Description

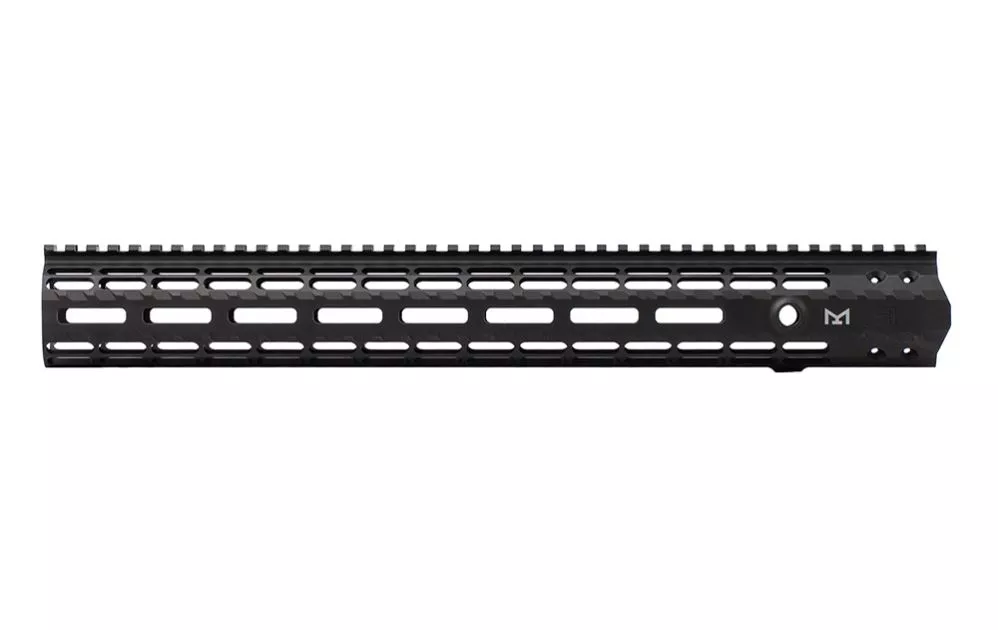

Aero Precision M5 Enhanced 16.6″ .308 High Profile DPMS M-LOK Handguard
DESCRIPTION
Our Enhanced M-LOK (EM) Handguards provide a lightweight free float design for your custom M5 .308 build. The M-LOK system allows advanced modularity past the current 1913 picatinny rail system. Machined to mil-spec dimensions and engineered to perfection, this handguard eliminates bulk while retaining strength and stability.
Features:
1pc free float design
Built in anti-rotation tabs
Scalloped rails
1.72″ inside diameter (from barrel nut cut to forward end) fits most muzzle devices and 1.5″ suppressors
1.78″ inside barrel nut cut area diameter
Compatible with low profile gas blocks
DPMS High Profile (.210) Tang
Aero Next Gen Feature – Quick disconnect sling socket at the 3, 6 and 9 o’clock positions
Aero Next Gen Feature – Additional milling along flats to aid with gripping and add visual appeal
Aero Next Gen Feature – New profile for the continuous picatinny top rail
Are you attaching this handguard to a standard threaded upper receiver?
Make sure to select the Handguard Barrel Nut option above (shims included). Our handguards use either the DPMS/Aero or Armalite interface and do not work with a standard barrel nut. If you are using our M5E1 Enhanced Upper Receiver, no additional pieces are needed.
*Please note – This handguard is specific to the M5 .308/M5E1 platform. It is not compatible with the AR15/M4E1 platform.
SPECS
Made In AmericaYes
PlatformM5
Handguard SeriesM5E1
Attachment TypeM-LOK
MaterialMachined from 6061-T6 aluminum
Actual Handguard Lengths 16″ – 16.6″
Aero Precision rail lengths measure from end to end. This is the point of contact at the receiver to the end of the last picatinny slot at the muzzle.
Weight (oz) 11.5 oz / 16.6″
OtherHandguard Screw Torque – 25 in-lbs
